A machine learning algorithm (such as classification, clustering or regression) uses a training dataset to determine weight factors that can be applied to unseen data for predictive purposes. *Behind every machine learning model is an optimization algorithm that relies heavily on calculus*. In this article, we discuss one such optimization algorithm, namely, the Gradient Descent Approximation (GDA) and we’ll show how it can be used to build a simple regression estimator.

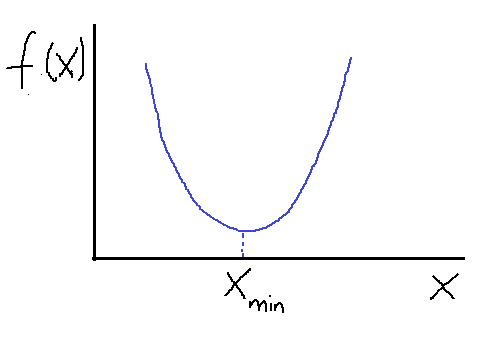

In one-dimension, we can find the maximum and minimum of a function using derivatives. Let us consider a simple quadratic function* f(x)* as shown below.

Suppose we want to find the minimum of the function *f(x)*. Using the gradient descent method with some initial guess, *X* gets updated according to this equation:

where the constant *eta *is a small positive constant called the learning rate. Note the following:

*when X_n > X_min, f’(X_n) > 0: this ensures that X_n+1 is less than X_n. Hence we are taking steps in the left direction to get to the minimum.**when X_n < X_min, f’(X_n) < 0: this ensures that X_n+1 is greater than X_n. Hence we are taking steps in the right direction to get to X_min.*

The above observation shows that it doesn’t matter what the initial guess is, the gradient descent algorithm will always find the minimum. How many optimization steps it’s going to take to get to *X_min* depends on how good the initial guess is. Sometimes if the initial guess or the learning rate is not carefully chosen, the algorithm can completely miss the minimum. This is often referred to as an “**overshoot**”. Generally, one could ensure convergence by adding a convergence criterion such as:

where *epsilon* is a small positive number.

In higher dimensions, a function of several variables can be optimized (minimized) using the gradient descent algorithm as well. In this case, we use the gradient to update the ** vector X**:

As in one-dimension, one could ensure convergence by adding a convergence criterion such as:

In this subsection, we describe how a simple python estimator can be built to perform linear regression using the gradient descent method. Let’s assume we have a one-dimensional dataset containing a single feature (*X*) and an outcome (*y*), and let’s assume there are N observations in the dataset:

A linear model to fit the data is given as:

where *w0* and* w1* are the weights that the algorithm learns during training.

If we assume that the error in the model is independent and normally distributed, then the likelihood function is given as:

To maximize the likelihood function, we minimize the sum of squared errors (*SSE*) with respect to *w0* and *w1*:

The **objective function** or our **SSE function** is often minimized using the gradient descent approximation(GDA) algorithm. In the GDA method, the weights are updated according to the following procedure:

i.e., in the direction opposite to the gradient. Here, *eta* is a small positive constant referred to as the learning rate. This equation can be written in component form as:

import pandas as pd import numpy as np import matplotlib.pyplot as plt class GradientDescent(object): """Gradient descent optimizer. Parameters ------------ eta : float Learning rate (between 0.0 and 1.0) n_iter : int Passes over the training dataset. Attributes ----------- w_ : 1d-array Weights after fitting. errors_ : list Error in every epoch. """ def __init__(self, eta=0.01, n_iter=10): self.eta = eta self.n_iter = n_iter def fit(self, X, y): """Fit the data. Parameters ---------- X : {array-like}, shape = [n_points] Independent variable or predictor. y : array-like, shape = [n_points] Outcome of prediction. Returns ------- self : object """ self.w_ = np.zeros(2) self.errors_ = [] for i in range(self.n_iter): errors = 0 for j in range(X.shape[0]): self.w_[1:] += self.eta*X[j]*(y[j] - self.w_[0] - self.w_[1]*X[j]) self.w_[0] += self.eta*(y[j] - self.w_[0] - self.w_[1]*X[j]) errors += 0.5*(y[j] - self.w_[0] - self.w_[1]*X[j])**2 self.errors_.append(errors) return self def predict(self, X): """Return predicted y values""" return self.w_[0] + self.w_[1]*X

**a) Create dataset**

```
np.random.seed(1)
X=np.linspace(0,1,10)
y = 2*X + 1
y = y + np.random.normal(0,0.05,X.shape[0])
```

**b) Fit and Predict**

```
gda = GradientDescent(eta=0.1, n_iter=100)
gda.fit(X,y)
y_hat=gda.predict(X)
```

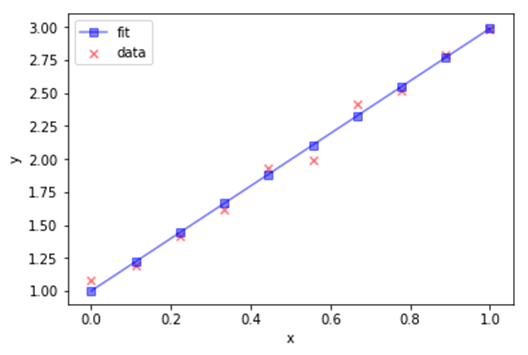

**c) Plot Output**

```
plt.figure()
plt.scatter(X,y, marker='x',c='r',alpha=0.5,label='data')
plt.plot(X,y_hat, marker='s',c='b',alpha=0.5,label='fit')
plt.xlabel('x')
plt.ylabel('y')
plt.legend()
```

**d) Calculate R-square value**

```
R_sq = 1-((y_hat - y)**2).sum()/((y-np.mean(y))**2).sum()
R_sq
0.991281901588877
```

In summary, we have shown how a simple linear regression estimator using the GDA algorithm can be built and implemented in Python. Behind every machine learning model is an optimization algorithm that relies heavily on calculus. If you would like to see how the GDA algorithm is used in a real machine learning classification algorithm, see the following Github repository.
